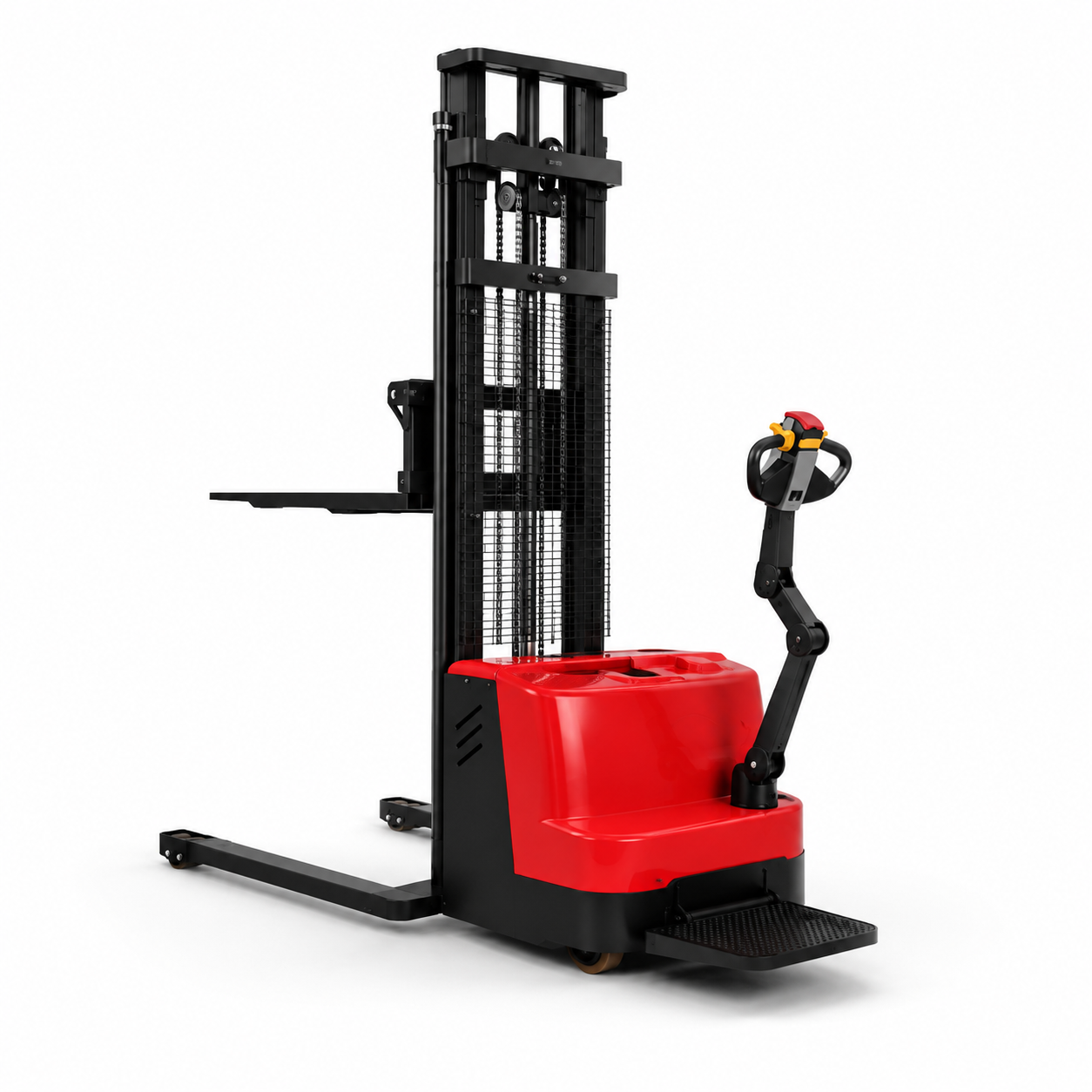

Material Handling Stacker
BAIR SHIFT Material Handling Stackers are designed for lifting, stacking and transporting palletized loads in warehouses, factories and industrial facilities. The range includes manual, self-loading, semi-electric, fully automatic and walkie stackers with capacities up to 3 Ton and lifting heights up to 6000 mm.
| Model | Product Type | Capacity | Maximum Lift Height | Main Configuration |
|---|---|---|---|---|
| BS-ST-101 | C-Type Stacker | 2 Ton | 1600 mm | Manual / Hydraulic |
| BS-ST-102 | Self Loading Stacker | 1 Ton | 1600 mm | Battery Assisted |
| BS-ST-103 | H-I Type Stacker | 1–3 Ton | Up to 3000 mm | Manual |
| BS-ST-104 | Semi Electric Boom Lifter | 1.5 Ton | 3000 mm | Semi Electric |
| BS-ST-105 | Semi Electric Stacker | 1.5 Ton | 2000–4500 mm | Semi Electric |
| BS-ST-106 | Fully Automatic Stacker | 1.5 Ton | 3000 mm | Fully Automatic |
| BS-ST-107 | Fully Automatic Stacker | 1.5 Ton | 3500 mm | Battery Operated |
| BS-ST-108 | Fully Automatic Stacker | 1.5 Ton | 4500–6000 mm | Fully Automatic |
| BS-ST-109 | Walkie Stacker | 1.5 Ton | 3000–3500 mm | Battery Operated |
Versatile Stacking Solutions for Industrial Material Handling
BAIR SHIFT Material Handling Stackers are designed for lifting, positioning, stacking and transporting palletized loads across warehouses, factories, logistics facilities and industrial environments.
The range covers everything from practical manual stackers to semi-electric and fully automatic battery-operated equipment, allowing customers to select a model according to their load capacity, lifting height and operating requirements.
With rated capacities ranging from 1 Ton to 3 Ton and lifting heights reaching up to 6000 mm, the range supports both everyday warehouse handling and higher-level pallet stacking operations.
Key Features
- Load capacity options from 1 Ton to 3 Ton
- Lifting heights up to 6000 mm
- Manual, semi-electric and fully automatic models
- Self-loading configuration available
- Walkie Stacker configuration available
- Nylon and PU wheel options
- Multiple fork dimensions and widths
- 12V and 24V electrical configurations depending on model
- Multiple lift-height options within the same model family
- Suitable for warehouse and industrial stacking applications
Available Configurations
Manual Stackers
Models such as BS-ST-101 and BS-ST-103 provide practical manual material lifting solutions with capacities reaching up to 3 Ton.
Self Loading Stacker
BS-ST-102 combines a 1 Ton capacity with a self-loading configuration and a standard lifting height of 1600 mm.
Semi Electric Stackers
BS-ST-104 and BS-ST-105 combine electric lifting assistance with different operational configurations. BS-ST-105 is available with lift heights from 2000 mm to 4500 mm.
Fully Automatic Stackers
BS-ST-106, BS-ST-107 and BS-ST-108 offer powered material handling with lift heights ranging from 3000 mm to 6000 mm.
Walkie Stacker
BS-ST-109 provides a 1.5 Ton rated capacity, 24V electrical system and available lift heights of 3000 mm and 3500 mm.
6. Applications
Suitable for:
- Warehouses
- Manufacturing plants
- Logistics centres
- Distribution centres
- Industrial storage facilities
- Pallet stacking
- Loading and unloading
- Production floor material movement
- Rack loading
- Internal material handling
- Goods positioning
- Industrial stores
